ABIT AB9 Pro Intel P965 Express Motherboard Review
ABIT AB9 Pro Intel P965 Express Motherboard Review - PCSTATS
Since we're dealing with the Intel ICH8R southbridge, SATA RAID 0/1/5/10/JBOD is standard. Of course there's more to the AB9 Pro than just Serial ATA, this Socket 775 Intel P965 Express based motherboard has a lot going for it.
 80% Rating:
Filed under: Motherboards Published:  Author:
External Mfg. Website: ABIT Apr 10 2007   Max Page
Home > Reviews > Motherboards > ABIT AB9 Pro

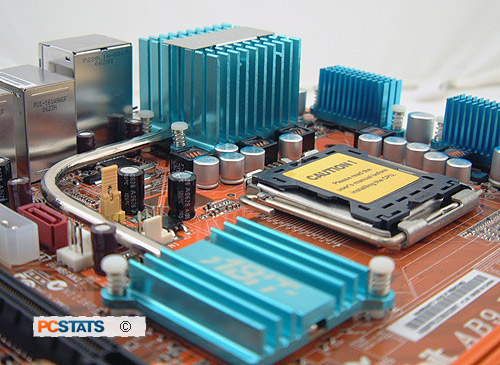

The Intel 965P Express chipset

The Intel P965 Express chipset is Intel's mainstream-performance core logic, it supports all Socket 775 processors running on a 533/800/1066MHz Front Side Bus. The P965 Express is married to the ICH8-series Southbridge which replaces the ICH7.

The southbridge used with the ABIT AB9 Pro motherboard is the ICH8R model, it supports RAID via Intels Matrix storage technology.

Intel has increased its DDR2 memory support to 800 MHz with the P965 Express chipset, putting Intel's latest and greatest at par with AMD's Socket AM2 Athlon64's. Intel calls the new memory controller FMA or 'Fast Memory Access' and gives the system a maximum theoretical bandwidth of 12.8GB/s. Below is breakdown on the full feature set of the Intel 975 / 965 Express series chipsets, including the P965 Express which is used on the ABIT AB9 Pro motherboard.

Intel 975 / 965 / 955 Series Chipset Feature Breakdown
Intel 975X Express Intel P965 Express Intel Q965 Express Intel G965 Express Intel Q963 Express Intel 955X Express
CPU LGA775 Core 2 Duo LGA775 Core 2 Duo LGA775 Core 2 Duo LGA775 Core 2 Duo LGA775 Core 2 Duo LGA775 Pentium D
Front Side Bus (FSB) 1066/800 MHz 1066/800/533 MHz 1066/800/533 MHz
2 threads
1066/800/533 MHz 1066/800/533 MHz 1066/800MHz
Intel Flex Memory Technology Yes Yes Yes Yes Yes Yes
Dual Channel Memory Support DDR2 800/667/533 DDR2 800/667/533 DDR2 667/533 DDR2 667 DDR2 667 DDR2 667/533
Maximum Memory Capacity 8GB 8GB 8GB 8GB 8GB 8GB
Integrated Graphics - - GMA 3000 GMA 3000 GMA 3000 -
PCI Express x16 2 1 1 1 1 1
PCI Express x1 4 4 4 4 4 4
Intel Matrix Storage Technology Yes Yes Yes Yes Yes Yes
SATA/IDE HDD 4/1 6/0 6/0 6/0 6/0 4/1
SATA Speed 3Gb/s 3Gb/s 3Gb/s 3Gb/s 3Gb/s 3Gb/s
RAID 0, 1, 5, 10 (with ICH7R) 0, 1, 5, 10 (with ICH8R) 0, 1, 5, 10 (with ICH8R) 0, 1, 5, 10 (with ICH8R) 0, 1, 5, 10 (with ICH8R) 0, 1, 5, 10 (with ICH7R)
Hard Drive NCQ - Yes Yes Yes Yes -
USB 2.0 Ports 8 8 10 10 10 8
PCI Masters 6 6 6 6 6 6
Audio High Definition Audio (Azalia) High Definition Audio (Azalia) High Definition Audio (Azalia) High Definition Audio (Azalia) High Definition Audio (Azalia) High Definition Audio (Azalia)

Initially Intel's P965 Express chipset only supported a single PCI Express x16 videocard, however most current motherboards feature two physical PCI Express x16 slots. Given that the ICH8R southbridge has six PCI Express lanes, these are often utilized to support the second PCI Express x16 slot with 4 PCI Express lanes. It's not totally ideal as both videocards receiving the full 16 PCI Express lanes each, but it works well enough with conventional videocards and some Crossfire configurations.

The ABIT AB9 Pro motherboard has just one PCI Express x16 slot, so it's not possible to run two videocards in tandem, in a SLI or Crossfire type situation, with this motherboard.

A dedicated 2GB/s I/O bus connects the Intel P965 Express Northbridge and ICH8R Southbridge together, which might be a little tight if you have many high bandwidth devices installed but should be just fine for the average user.

The ABIT AB9 Pro motherboard comes installed with the ICH8R Southbridge which includes a ton of goodies.

There are six 3GB/s Serial ATA II channels (which support RAID modes 0, 1, 5 and 10) as well a 7.1 channel Intel Azalia high definition audio, 10 USB 2.0 ports in total (split between headers and the I/O slot), six PCI Express x1 lanes, and an integrated Intel GigABIT MAC that runs through the PCI Express bus specific to this chipset.

Noticeably lacking from the chipset itself is parallel IDE support. In this case, ABIT resorts to a stand alone IDE controller to provide IDE support on the AB9 pro motherboard. A block chart of the Intel P965 Express chipset's major features is illustrated below.

Luckily parallel IDE technology isn't overly expensive to add to a motherboard. Next up, PCSTATS overclocks the ABIT AB9 Pro motherboard!
