ATI All in Wonder Radeon 8500 128 MB Edition
ATI All in Wonder Radeon 8500 128 MB Edition - PCSTATS
The card is fully VIVO compatible and comes with a purple break out box which has almost become an ATI trademark in itself.
 85% Rating:
Filed under: Video Cards Published:  Author:
External Mfg. Website: ATI May 29 2002   C. Sun
Home > Reviews > Video Cards > ATI All in Wonder Radeon 8500

The Card & Overclocking

What videocard review would be complete without a section on overclocking?

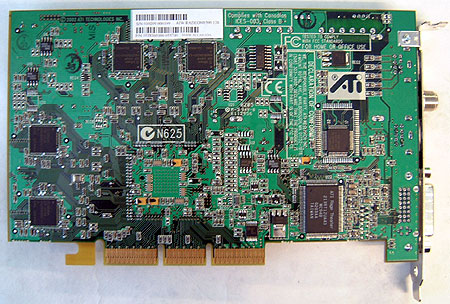

Sporting 3.3ns Infineon BGA DDR SGRAM that is clocked at 550 MHz, ATi has underclocked the memory by about 10% since 3.3ns DDR RAM should be able to clock as high as 606 MHz. With no additional cooling on the BGA RAM, we were able to hit a high of 660 MHz before we encountered visual artifacts and it would go all the way up to 700 MHz before locking up (with quite a bit of "snow" however).

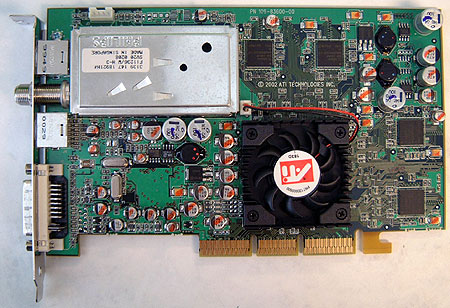

As for the core, it is cooled by a rather generic ATI heatsink fan combo which is attached with some thermal glue. Even with this cooling setup we were pleased to see that the core would go all the way up to 308 MHz!

That's quite a good core overclock with default cooling.

As you'll see in the benchmarks at stock speeds, the All in Wonder Radeon 8500 128MB is quite a force, overclocked just makes things better!

< Previous Page © 2023 PCSTATS.com Next Page >



Contents of Article: ATI All in Wonder Radeon 8500
 Pg 1.  ATI All in Wonder Radeon 8500 128 MB Edition
 Pg 2.  Remote Wonder and Software
 Pg 3.  Television controls
 Pg 4.  — The Card & Overclocking
 Pg 5.  Benchmarks: 3DMark2000 / 2001SE
 Pg 6.  Benchmarks: Aquamark 2.3
 Pg 7.  Benchmarks: CodeCreatures
 Pg 8.  Benchmarks: Comanche 4
 Pg 9.  Benchmarks: QIII Arena
 Pg 10.  Benchmarks: 3DMark 2001SE, Aquamark, QIII w/h AA
 Pg 11.  Final Conclusions
