MSI NX8600GT Twin Turbo Shader Overclocking Geforce 8600GT Videocard Review
MSI NX8600GT Twin Turbo Shader Overclocking Geforce 8600GT Videocard Review - PCSTATS
MSI's NX8600GT Twin Turbo videocard is especially interesting, it's got push-button shader overclocking! By default the videocard comes pre-overclocked with its core running at 600 MHz and memory at 1600 MHz (stock is 540/1400).
 86% Rating:
Filed under: Video Cards Published:  Author:
External Mfg. Website: MSI Nov 07 2007   C. Sun
Home > Reviews > Video Cards > MSI NX8600GT Twin Turbo

Overclocking the MSI NX8600GT Twin Turbo Videocard

Overclocking Results:
stock overclocked
gpu (core) speed: 600 mhz 712 mhz
memory speed: 1600 mhz 1754 mhz
if you're new to Overclocking and not sure what to do, check out these two excellent Guides for some pointers:
Overclocking the CPU and Memory
Overclocking the Videocard

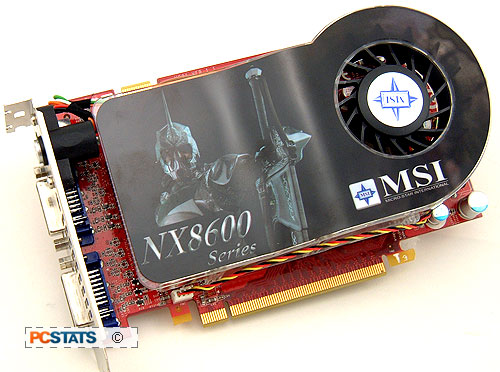

The MSI NX8600GT Twin Turbo videocard is built with overclockers in mind, coming pre-overclocked from the factory to 600MHz GPU / 1600MHz memory. The built in Twin Turbo feature bumps those clock speeds up conservatively, to 620MHz GPU / 1512MHz shader / 1600MHz memory. Let's be frank, that's nice for a novice, but we can overclock further than this!

Let's really see how far the MSI NX8600GT Twin Turbo videocard can handle being overclocked when it's installed into an Asus M2-CROSSHAIR motherboard with an AMD Athlon64 FX-62 processor.

Starting with the GeForce 8600GT core first, and with the Twin Turbo feature turned off, it is clocked at 600 MHz. Going up in 5 MHz increments, it was clear that the GeForce 8600GT GPU was a solid overclocker. The core easily cracked the 700 MHz mark and we settled down on a speed of 712 MHz!

Next up was the 256MB of GDDR3. Starting at 1600 MHz, the clock frequency was overclocked in 20 MHz jumps. I didn't expect too much from the memory as it's already pretty heavily overclocked from the reference card default of 1400MHz. The memory cracked the 1700 MHz mark like it was nothing, and topped out at 1754 MHz. Anything higher and RivaTuner would complain about the videocard failing the driver overclocking test.

So, from the pre-overclocked starting point PCSTATS pushed the MSI NX8600GT Twin Turbo videocard to 712MHz GPU / 1754MHz memory. Not bad for a mainstream videocard, not bad at all!

Prelude to BenchmarksThe details of how the MSI NX8600GT Twin Turbo test system was configured for benchmarking; the specific hardware, software drivers, operating system and benchmark versions are indicated below. In the second column are the general specs for the reference platforms this nVIDIA GeForce 8600GT 256MB based videocard is to be compared against. Please take a moment to look over PCSTATS test system configurations before moving on to the individual benchmark results on the next page. Testing was done with Twin Turbo disabled because the manual overclocking results provided better overall results.

PCSTATS Test System Configurations
test system reference system
processor:

amd Athlon64 FX-62 (AM2)

Clock Speed:

14 x 200 MHz = 2.8 GHz

Motherboards:

Asus M2-CROSSHAIR (NF 590 SLI)

Videocard: MSI NX8600GT Twin Turbo

Asus EAX1900XTX/2DHTV/512M/A
Asus EAX1950PRO/HTDP/256M/A
MSI NX8800GTX-T2D768E-HD
Foxconn FV-N88SMCD2-ONOC
MSI NX8800GTS-T2D320E-HD-OC
nVidia GeForce 8600GTS SLI
Foxconn
8600GTS-256
MSI NX8600GT-T2D256E-OC
MSI NX8600GTS-T2D256E-OC
Gigabyte GV-NX85T256H SLI
Gigabyte GV-NX85T256H
MSI NX7950GX2-T2D1GE
MSI NX7900GTX-T2D512E
Gigabyte GV-NX76GT256D-RH
Biostar Sigma-Gate GeForce 7600GS
Albatron 8600GT-256

Memory:

Corsair Twin2X2048-6400C3

Hard Drive: 74GB Western Digital Raptor WD740
CDROM: AOpen Combo 52x
Power Supply: PC Power & Cooling TurboCool 510 SLI
Heatsink: Athlon64 FX-62 Reference Heatsink
Software Setup:

Microsoft WindowsXP SP2
Microsoft Windows Vista Ultimate
nVIDIA Forceware 6.70
nVIDIA Forceware 91.27
ATI Catalyst 7.7

Benchmarks:

3DMark05
3DMark06
FarCry
Splinter Cell: Chaos Theory
Doom 3
Quake 4
FEAR
Call of Juarez
Lost Planet
