Environmentally
friendly computer hardware is a growing trend, and while performance videocards
are usually the worst power-hogs the situation is steadily improving.

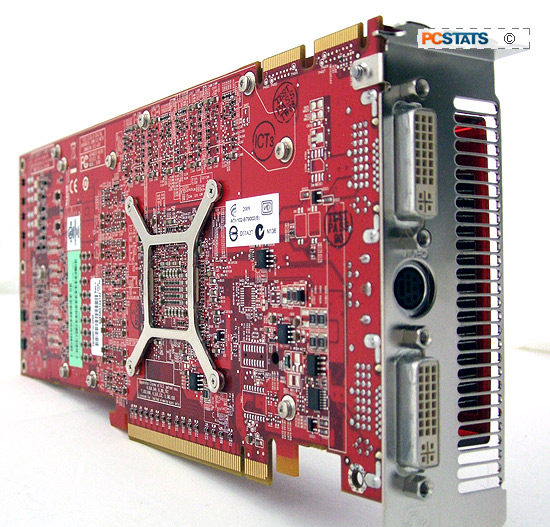

The ASUS EAH4890 uses two 6-pin PCI Express power
connectors in addition to the power it draws from the PCI Express x16 slot
(total card power ~190W). This is a little less complicated than high-end
videocards that demand the less common 8-pin PCI Express connector. Let's take a look at how much power the ASUS EAH4890
draws in a typical computer system.
Total System Power Draw
Comparisons
Here's how the ASUS EAH 4890 HTDI/1GD5/A videocard
stacks up in real life against a couple different cards. PCSTATS measures total
system power draw and compares that in 3D loaded (max value recorded in
3DMark06) and idle states (at Windows desktop).
The power supply used in each test is an A-PFC compliant
PC Power and Cooling 750W model.
 Videocard Power
Consumption (Total System Power Draw) |
| Idle at Desktop |
Watts |
Ranking |
| Palit HD4870 X2 2GB |
177 |
   |
| ASUS EAH3870 X2 1GB TOP/G/3DHTI/1G/A |
153 |
|
| ASUS EAH3870 X2 1GB TOP/G/3DHTI/1G/A
(Crossfire) |
222 |
|
| MSI R3870X2-T2D1G-OC |
165 |
|
 ASUS EAH4890
HTDI/1GD5/A |
137 |
   |
| ASUS EAH4850 HTDI/512M |
120 |
|
| MSI R4830-T2D512-OC (Radeon 4830) |
108 |
|
| Diamond Viper Radeon HD 2900XT CrossFire |
195 |
|
| ASUS EAX1900XTX 2DHTV/512M/A |
160 |
|
| ASUS EAX1950PRO/HTDP/256M/A |
150 |
|
| ASUS ENGTS250 DK |
120 |
   |
| ASUS ENGTS250 DK in SLI |
170 |
|
| Gigabyte GV-N96TSL-1GI |
96 |
|
| nVidia Geforce 9600GTs in SLI |
166 |
|
| ASUS EN9600GT Top/HTDI/512M |
152 |
|
| Palit Geforce 9600GT 512 |
151 |
|
| MSI NX8800GTX-T2D768E |
196 |
|
| MSI NX7950GX2-T2D1GE |
183 |
|
| MSI NX7900GTX-T2D512E |
165 |
|
| Gigabyte GV-NX76T256D-RH |
140 |
|
| 3D Loaded: |
Watts |
Ranking |
| Palit HD4870 X2 2GB |
421 |
|
| ASUS EAH3870 X2 1GB TOP/G/3DHTI/1G/A |
390 |
|
| ASUS EAH3870 X2 1GB TOP/G/3DHTI/1G/A
(Crossfire) |
610 |
|
| MSI R3870X2-T2D1G-OC |
330 |
|
| ASUS EAH4890
HTDI/1GD5/A |
225 |
|
| ASUS EAH4850 HTDI/512M |
202 |
|
| MSI R4830-T2D512-OC (Radeon 4830) |
177 |
|
| Diamond Viper Radeon HD 2900XT CrossFire |
549 |
|
| ASUS EAX1900XTX 2DHTV/512M/A |
333 |
|
| ASUS EAX1950PRO/HTDP/256M/A |
252 |
|
| ASUS ENGTS250 DK |
214 |
|
| ASUS ENGTS250 DK in SLI |
316 |
|
| Gigabyte GV-N96TSL-1GI |
160 |
|
| nVidia Geforce 9600GTs in SLI |
313 |
|
| ASUS EN9600GT Top/HTDI/512M |
220 |
|
| Palit Geforce 9600GT 512 |
221 |
|
| MSI NX8800GTX-T2D768E |
345 |
|
| MSI NX7950GX2-T2D1GE |
315 |
|
| MSI NX7900GTX-T2D512E |
277 |
|
| Gigabyte GV-NX76T256D-RH |
213 |
| |
Overall power draw numbers show that while the ASUS
EAH4890 HTDI/1GD5/A videocard does require two PCI Express power connectors,
this videocard is hardly a power hog. Under load it draws significantly less
power than older dual-GPU AMD Radeon videocards or NVIDIA videocards in SLI
mode, the two configurations that come closest to matching its performance.
Next up PCSTATS overclocks the ASUS EAH4890 HTDI/1GD5/A,
boosts the GPU voltage, then overclock it some more!
