| Overclocking Results: |
|
|
The
integration that makes the A8-3850 a wonderful mainstream CPU also makes
it a bloody stubborn mule to overclock. Here's why; the A8-3850 APU is multiplier
locked so it can only be overclocked by increasing the motherboard bus speed. Ordinarily this isn't a big
deal, PCSTATS has overclocked countless multiplier locked processors this
way.
What's different with the
socket FM1 AMD A8-3850 APU is that the Northbridge, graphics
and a few other devices are tied directly to the board's
100MHz bus speed. If we overclock the motherboard bus to 150MHz (for example),
we're indirectly overclocking EVERYTHING that's tied to it.
To
give this 2.9GHz quad-core processor a fighting chance at overclocking to its best,
a set of Crucial Ballistic DDR3-1600 memory was locked into the AMD A75
based Gigabyte GA-A75-UD4H motherboard and set to run in DDR3-800 MHz mode. This
way the memory won't hold things back when bus speed increases. A stock
AVC heatsink was used to cool the CPU.
AMD's
Fusion A8-3850 APU operates with a 29x multiplier that cannot be changed, so
PCSTATS set about overclocking the processor by increasing motherboard bus speed
from it's 100MHz default.
In
the BIOS, the Gigabyte GA-A75-UD4H's bus speed was increased to from 100MHz
to 110MHz, then 120MHz. At 125MHz the system crashed. Higher bus speeds were
tried, but the best PCSTATS could squeeze from the 2.9GHz AMD Fusion A8-3850 APU
was 3.48GHz (29x multiplier @ 120MHz
motherboard bus speed).
Next up,
a look at the BIOS and our test system specs.
BIOS Controls and Tweaks
Gigabyte kept the traditional BIOS for the GA-A75-UD4H
motherboard. The main overclocking controls for adjusting the CPU multiplier
(and BCLK frequency) are found in the MB Intelligent Tweaker section.
The processors' IGP can be overclocked and tweaked to your
hearts content, though in reality the best performance gains will come from
dropping in a discreet videocard.

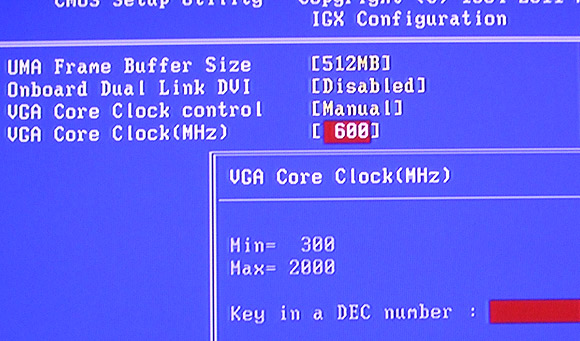

VGA clock speed can be adjusted if you'd like to try you
hand at a little IGP overclocking.

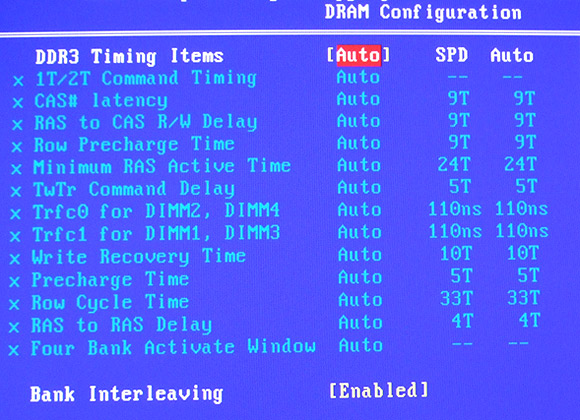

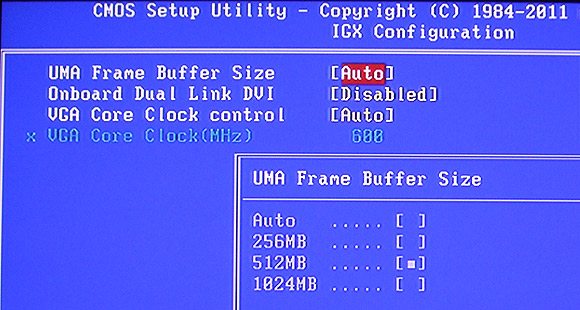

The amount of memory allocated away from the system can
also be controlled. The default is 512MB. The BIOS has extensive memory control
options, timings can be set down to the individual clocks cycle, per channel.
With the
BIOS covered, let's move onto overclocking and the PCSTATS motherboard benchmark
suite.
Test System Specs
PCSTATS
has relied on Crucial memory for its servers for years, so it was only logical
to install 4GB's of Crucial Ballistix DDR3-1600 8-8-8-24 memory into the
Gigabyte GA-A75-UD4H motherboard test system. The storage device is super quick
OCZ Vertex 2 SSD (120GB, SATAII). The effect on system-wide benchmarks is
dramatic! Thanks to AMD, Crucial
Memory and OCZ Technology for help outfitting this test platform.
Gigabyte GA-A75-UD4H
Motherboard
Details
on how the socket FM1 Gigabyte GA-A75-UD4H motherboard was configured for
benchmarking - including specific hardware, software drivers, operating system
and benchmark versions - is listed in the Test System Spec chart below. Please
take a moment to look over PCSTATS test system configurations before moving on
to the individual benchmark results.
|
