815E Master-S Motherboard

Briefly: i815E based socket 370 motherboard with onboard Adaptec 160M ultra SCSI, 4 USB ports and Smart D-LED system diagnosis.

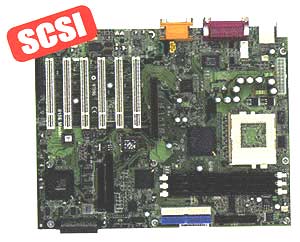

815E Master-S
CPU: Intel Pentium III / Celeron FC-PGA socket 370 processors up to 1.0Ghz at 66/100/133 FSB
Features:
  • Intel i815E (ICH2) chipset
  • 66/100/133Mhz Front Side Bus
  • Smart D-LED, Fuzzy Logic 2
  • TOP Tech III, DMI, STR, Flexible AIMM
  • Supports PCI 2.2
SCSI:
  • Adaptec AIC-7892 chipset
  • Supports Ultra (SE) devices
Bus Speed:
  • Supports 160MB/sec single channel Ultra SCSI
Audio:
  • Integrated in ICH2
Video:
  • Integrated in GMCH
Memory:
  • Three 168-pin DIMM sockets support PC100/PC133 SDRAM module s
  • supports up to a maximum of 512MB SDRAM
I/O Connectors and Ports:
  • 2 Bus master IDE channels supporting DMA 33/66/100 for up to 4 IDE devices
  • PS/2 keyboard and PS/2 mouse connectors
  • 1 floppy port
  • 1 parallel port (EPP/ECP)
  • 2 serial ports
  • 4 USB connectors
  • 1 standard VGA connector
  • Audio connectors (line-in, line-out, mic-in, game port)
Expansion Slots:
  • 1 AGP Pro slot
  • 6 PCI slots
  • 1 CNR slot
Miscellaneous:
  • ATX formfactor
  • Hardware monitoring - CPU / system voltage detection. CPU, Chassis, power supply fan speed monitoring. Processor and system temperature monitoring
  • Wake on LAN header
  • Wake on ring header
