Tyan Tiger i7500 S2722GNN Dual Xeon Motherboard
Tyan Tiger i7500 S2722GNN Dual Xeon Motherboard - PCSTATS
The Tyan Tiger S2722 is based on the Intel server E7500 chipset and supports up to two Socket 603 Xeon processors.
 86% Rating:
Filed under: Motherboards Published:  Author:
External Mfg. Website: Tyan Apr 22 2003   C. Sun
Home > Reviews > Motherboards > Tyan S2722GNN

Benchmarks: NetBench

NetBench Source: E-Testing Labs

NetBench is a portable benchmark program that measures how well a file server handles file I/O requests from 32-bit Windows clients, which pelt the server with requests for network file operations. NetBench reports throughput and client response time measurements. Version 7.0.2 of NetBench answers user requests for greater disk coverage and more disk-testing flexibility. To run NetBench, you need a file server, a PC running Windows NT or Windows 2000 (called the controller) to start and monitor the tests, and clients that are running either Windows 95/98 or Windows NT/2000.

Netbench

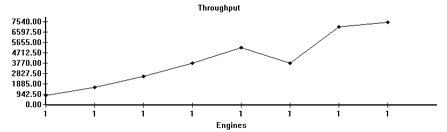

dm_nb701 Test Throughput Ranking
1. Tyan Tiger S2720 (HT Enabled) 6
2. Tyan Tiger S2722 (HT Disabled) 5
3. Tyan Tiger S2722 (HT Enabled) 5

Here with the first test dm_nb70 we see that with HyperThreading does not affect performance.

Netbench

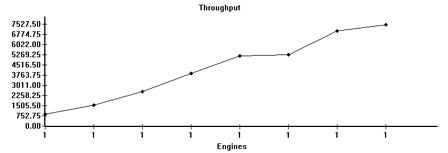

en_dm_nb701 Throughput Ranking
1. Tyan Tiger S2720 (HT Enabled) 78
2. Tyan Tiger S2722 (HT Disabled) 43
3. Tyan Tiger S2722 (HT Enabled) 44

I'm not really sure why the S2722 performs so much lower than The S2720. I reran the benchmark a few times and got the same result.

Netbench
NIC_nb701 Throughput


Tyan S2720 (HT Enabled)


Tyan S2722 (HT Disabled)


Tyan S2722 (HT Enabled)

For the first time we see the Tyan S2722 beat its better equipped cousin.

< Previous Page © 2023 PCSTATS.com Next Page >



Contents of Article: Tyan S2722GNN
 Pg 1.  Tyan Tiger i7500 S2722GNN Dual Xeon Motherboard
 Pg 2.  ATX Features in a Sever Board
 Pg 3.  Monitoring Software and HT Support
 Pg 4.  CPU Utilizations and Test Systems
 Pg 5.  Benchmarks: Webmark 2001
 Pg 6.  — Benchmarks: NetBench
 Pg 7.  Benchmarks: WebBench static_mt_wb401
 Pg 8.  Benchmarks: WebBench static_wb401
 Pg 9.  Benchmarks: Sysmark 2002
 Pg 10.  Conclusions on the Tyan Tiger S2722
