Corsair TwinX1024-4000Pro DDR Memory Review
Corsair TwinX1024-4000Pro DDR Memory Review - PCSTATS

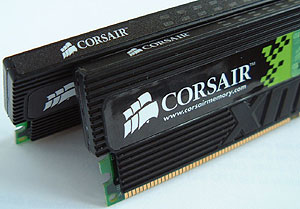

Corsair's TwinX1024-4000Pro memory modules are easily the coolest looking DIMM's on the market, bar none.
 98% Rating:
Filed under: Memory Published:  Author:
External Mfg. Website: Corsair Sep 15 2003   C. Sun
Home > Reviews > Memory > Corsair Twinx1024-4000Pro

Overclocking Corsair CMX512-4000Pro DDR

To meet the demands of faster and faster DDR, PCStats has recently moved to a new AMD test motherboard. Where we used to test memory with the Epox 8RGA+, we are now using the Albatron's KX18D Pro II as it is able to reach the higher numbers with greater ease.

Anyway we plugged the Corsair CMX512-4000Pro memory in, and as with the older CMX512-4000 modules we were only able to run the memory with aggressive timings of 2-3-3-6.

Starting at 200 MHz we began to raise the FSB slowly. At 213 MHz we ran into a few stability problems and raised the memory voltage to 2.8V solve them (remember 2.75V is the default voltage for this memory).

At 220 MHz we again ran into a few more problems but going to 2.9V solved things. With the AMD test system we were able to hit a maximum speed of 225 MHz FSB while maintaining 2-3-3-6 timings which is not that bad, but far from the memory's 250 MHz rating (at 3-4-4-8). Loosening the timings to 3-4-4-8 didn't help us overclock any higher curiously.

We had some high hopes with the memory for our Intel test system. Unfortunately no matter what I tried I could only get the memory to function properly at 3-4-4-8 with PAT enabled on an Abit IS7 motherboard. It was no surprise that the Corsair CMX512-4000Pro memory ran at 250MHz flawlessly. Increasing the speed in nice even 2 MHz intervals, the memory topped out at a maximum of 260 MHz on the Intel test system.

pcstats test system #1 specs:

computer hardware:

processor:

athlonxp 3200+

clock speed:

11 x 200 mhz = 2.2 ghz

10 x 225 mhz = 2.25 ghz

motherboards:

albatron kx18d pro ii

chipsets:

nforce2 ultra 400

videocard:

ati radeon 9800 pro (325/620)

memory:

2x 512b corsair twinx1024-4000pro*

hard drive: 40gb wd special ed.
cdrom: nec 52x cd-rom
floppy:

panasonic 1.44mb floppy drive

heatsink: thermalright sk6 w/36cfm delta
powersupply: vantec 470w stealth psu
software setup

windowsxp build 2600
nforce2 2.03
catalyst 3.5

benchmarks

sisoft sandra 2003
pcmark2002
3dmark2001se
quake iii arena
ut2003

* - memory was running with 2-3-3-6 timings for all benchmarks!

pcstats test system #2 specs:

computer hardware:

processor:

pentium 4 2.4c

clock speed:

12 x 200 mhz = 2.4 ghz

12 x 260 mhz = 3.12 ghz

motherboards:

abit is7

chipsets:

i865pe

videocard:

ati radeon 9800 pro (380/680)

memory:

2x 512b corsair twinx1024-4000pro**

hard drive: 20gb wd 7200 rpm
cdrom: nec 52x cd-rom
floppy:

panasonic 1.44mb floppy drive

heatsink: thermalright sk6 w/36cfm delta
powersupply: pc p&c 510 turbo cool
software setup

windowsxp build 2600
intel 5.00.1012
catalyst 3.5

** - memory was running 3-4-4-8 for all intel benchmarks!
