Gigabyte GV-N285OC-2GI Geforce GTX 285 2GB Videocard Review
Gigabyte GV-N285OC-2GI Geforce GTX 285 2GB Videocard Review - PCSTATS
Everything you'd expect form a NVIDIA GT200b-based videocard is here: NVIDIA PhysX, CUDA, Hybridpower, 3-way SLI, Purevideo and Graphics Plus. Support for DirectX 10, OpenGL 2.1 are of course included as well, although NVIDIA has stated that it will be skipping DirectX 10.1 support altogether and instead go straight to DirectX 11.
 77% Rating:
Filed under: Video Cards Published:  Author:
External Mfg. Website: Gigabyte Sep 30 2009   J. Apong
Home > Reviews > Video Cards > Gigabyte GV-N285OC-2GI

Videocard Power Consumption Measurements

Here's how this Gigabyte videocard stacks up in real life against a couple different cards for power draw. PCSTATS measures total system power draw and compares that in 3D loaded (max value recorded in 3DMark06) and idle states (at Windows desktop). The power supply used in each test is an A-PFC compliant PC Power and Cooling 750W model.

PCSTATS Benchmark ReportVideocard Power Consumption (Total System Power Draw)
Idle at Desktop Watts Ranking
Palit HD4870 X2 2GB 177
Asus EAH3870 X2 1GB TOP/G/3DHTI/1G/A 153
Asus EAH3870 X2 1GB TOP/G/3DHTI/1G/A (Crossfire) 222
MSI R3870X2-T2D1G-OC 165
Asus EAH4890 HTDI/1GD5/A (rev.A) 138
Asus EAH4890 HTDI/1GD5/A 137
Asus EAH4850 HTDI/512M 120
MSI R4830 T2D512-OC (Radeon 4830) 108
Gigabyte GV-R477D5-512HB 135
Gigabyte GV-R477D5-512HB Crossfire 180
Asus EAH4770 FML/DI/512MD5/A 105
Asus EAH4770 HTDI/512MD5/A 101
Gigabyte GV-R435OC-512I 79
Diamond Viper Radeon HD 2900XT CrossFire 195
Asus EAX1900XTX 2DHTV/512M/A 160
Asus EAX1950PRO/HTDP/256M/A 150
Gigabyte GV-N285OC-2GI 113
ASUS ENGTX260 MT/HTDI/896MD3-A 135
Gigabyte GV-N26OC896H-GA 112
Sparkle GTX260 Core 216 140
ASUS ENGTS250 DK 120
ASUS ENGTS250 DK in SLI 170
ASUS EN9600GT DI/512MD3/A 86
Gigabyte GV-N96TSL-1GI 96
nVidia Geforce 9600GTs in SLI 166
Asus EN9600GT Top/HTDI/512M 152
Palit Geforce 9600GT 512 151
ASUS EN9400GT DI/1GLP 85
MSI NX8800GTX-T2D768E 196
MSI NX7950GX2-T2D1GE 183
MSI NX7900GTX-T2D512E 165
Gigabyte GV-NX76T256D-RH 140
3D Loaded: Watts Ranking
Palit HD4870 X2 2GB 421
Asus EAH3870 X2 1GB TOP/G/3DHTI/1G/A 390
Asus EAH3870 X2 1GB TOP/G/3DHTI/1G/A (Crossfire) 610
MSI R3870X2-T2D1G-OC 330
Asus EAH4890 HTDI/1GD5/A (rev.A) 244
Asus EAH4890 HTDI/1GD5/A 225
Asus EAH4850 HTDI/512M 202
MSI R4830 T2D512-OC (Radeon 4830) 177
Gigabyte GV-R477D5-512HB 186
Gigabyte GV-R477D5-512HB Crossfire 279
Asus EAH4770 FML/DI/512MD5/A 158
Asus EAH4770 HTDI/512MD5/A 153
Gigabyte GV-R435OC-512I 109
Diamond Viper Radeon HD 2900XT CrossFire 549
Asus EAX1900XTX 2DHTV/512M/A 333
Asus EAX1950PRO/HTDP/256M/A 252
Gigabyte GV-N285OC-2GI 277
ASUS ENGTX260 MT/HTDI/896MD3-A 277
Gigabyte GV-N26OC896H-GA 215
Sparkle GTX260 Core 216 262
ASUS ENGTS250 DK 214
ASUS ENGTS250 DK in SLI 316
ASUS EN9600GT DI/512MD3/A 148
Gigabyte GV-N96TSL-1GI 160
nVidia Geforce 9600GTs in SLI 313
Asus EN9600GT Top/HTDI/512M 220
Palit Geforce 9600GT 512 221
ASUS EN9400GT DI/1GLP 109
MSI NX8800GTX-T2D768E 345
MSI NX7950GX2-T2D1GE 315
MSI NX7900GTX-T2D512E 277
Gigabyte GV-NX76T256D-RH 213

The Gigabyte GV-N285OC-2GI videocard does surprisingly well in both of these power draw tests. Idle system power draw is a moderate 113W, less than we witnessed from the Radeon HD 4890 at idle. Under 3D load conditions power draw increases to 277W, still quite conservative for a flagship videocard.

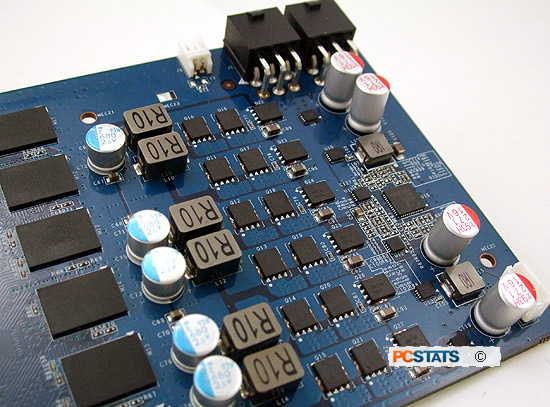

The majority of spikes in the above power draw chart indicate dual videocard SLI or Crossfire test situations, modern videocards have become a lot more power efficient thanks largely to die shrinks and optimization. The Gigabyte GV-N285OC-2GI videocard runs off a GPU fabricated on the 55nm process and requires two 6-pin auxiliary PCI Express power connectors.

If a pre-overclocked videocard is overclocked even further does that make it Uberclocked? We'll see right after the jump. After all, NVIDIA took the Geforce GTX 280 and overclocked it to get the Geforce GTX 285. Gigabyte took the GTX 285 and overclocked it to get the GV-N285OC-2GI. The next logical step is for PCSTATS to take the GV-N285OC-2GI and overclock it even faster!

Oh, the excitement is killing me!
