Gigabyte GV-N285OC-2GI Geforce GTX 285 2GB Videocard Review
Gigabyte GV-N285OC-2GI Geforce GTX 285 2GB Videocard Review - PCSTATS
Everything you'd expect form a NVIDIA GT200b-based videocard is here: NVIDIA PhysX, CUDA, Hybridpower, 3-way SLI, Purevideo and Graphics Plus. Support for DirectX 10, OpenGL 2.1 are of course included as well, although NVIDIA has stated that it will be skipping DirectX 10.1 support altogether and instead go straight to DirectX 11.
 77% Rating:
Filed under: Video Cards Published:  Author:
External Mfg. Website: Gigabyte Sep 30 2009   J. Apong
Home > Reviews > Video Cards > Gigabyte GV-N285OC-2GI

nVidia GTX285 Overclocking to 800MHz?

Overclocking Results:
stock overclocked
gpu (core) speed: 660 mhz 713 mhz
memory speed: 1200 mhz 1375 mhz
if you're new to Overclocking and not sure what to do, check out these two excellent Guides for some pointers:
Overclocking the CPU and Memory
Overclocking the Videocard

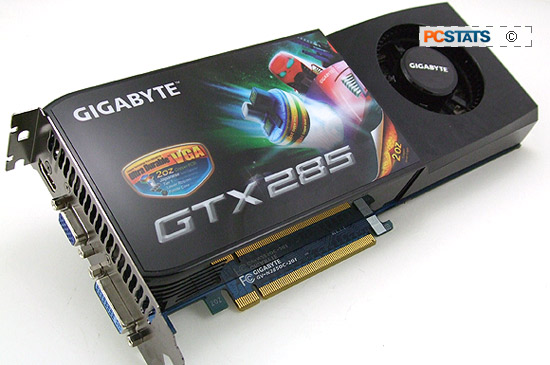

Gigabyte's GV-N285OC-2GI videocard ships from the factory with its nVidia GT200b GPU pre-overclocked from the default 648MHz to 660MHz - that's a pretty modest 12MHz. The videocard's massive 2048MB of onboard GDDR3 memory runs at a cool 1200 MHz. Overclocking nVidia GT200b-based videocards has always been a bit tricky, so it will be interesting to see how much further PCSTATS will push this Gigabyte PCI Express x16 videocard... anyone care to bet on 800MHz GPU?

Overclocking was done through nVidia's nTune utility which unlocks GPU and memory clock speeds. PCSTATS starts with the GPU first, pausing to test the results with a quick 3D benchmark before continuing.

The GeForce GTX285 GPU clock speed was increased in 25MHz increments from its default of 660MHz, and in no time at all the GV-N285OC-2GI's GPU was running at 704MHz. Unfortunately artifacts began appearing in 3DMark when the GPU was overclocked to 721MHz, so PCSTATS was forced to pull back on the GPU speed. In the end we settled for a modest overclock of 713MHz GPU. It's not bad, but certainly better than a measly 12MHz!

Next came the 2048MB of GDDR3 memory. The DRAM is clocked on this very big and very long videocard at an even 1200MHz. The memory overclocked really easily, rapidly increasing from the dull roar of 1238MHz... to 1290MHz... 1332MHz... 1353MHz... and finally the high pitched whine of a bolt shredding 1385MHz!

Time to see if the memory and nVidia GT200 will play together nicely at the respective maximum overclocked speed of each component. After a few minutes trying different configurations PCSTATS settled on a maximum overclocked speed of 713MHz for the Geforce GTX285 GPU, 1375MHz for the 2GB of GDDR3 memory.

Not the highest of overclock PCSTATS has ever squeezed from an nVidia graphics card, but it's certainly a nice dose of of 'free' performance none the less!

Prelude to Benchmarks:

The details of how the Gigabyte GV-N285OC-2GI videocard test system was configured for benchmarking; the specific hardware, software drivers, operating system and benchmark versions are indicated below. In the second column are the general specs for the reference platforms this nVidia GeForce GTX285 2GB based videocard is to be compared against. Please take a moment to look over PCSTATS test system configurations before moving on to the individual benchmark results on the next page.

PCSTATS Test System Configurations
test system reference system #1 reference system #2
processor: Intel Core 2 Duo E8400 (775) Intel Core 2 Duo E6750 (775) AMD Athlon64 FX-62 (AM2)
Clock Speed:

15 x 200MHz = 3.0GHz

14 x 200MHz = 2.6GHz 14 x 200MHz = 2.8GHz
Motherboards:

ASUS P5E3 Premiun (Intel X48 Express)
ASUS Striker II NSE (nF 790i SLI)*
MSI X48 Platinum
(Intel X48 Express)

MSI X48 Platinum (Intel X48 Express)

Foxconn C51XEM2 (NF 590 SLI)
Videocard:

Gigabyte GV-N285OC-2GI
Gigabyte GV-N26OC896H-GA
ASUS ENGTX260 MT/HTDI/896MD3
Sparkle GTX260 Core 216
ASUS ENGTS250 DK (SLI)*
ASUS EAH4890 HTDI/1GD5/A
Gigabyte GV-N96TSL-1GI
ASUS EN9600GT DI/512MD3/A
ASUS EN9400GT/DI/1G(LP)
Gigabyte GV-R435OC-512I

Palit Radeon HD 4870X2
ASUS Radeon EAH4850/HTDI/512MA
MSI Radeon R3870X2-T2D1G-OC
ASUS Radeon EAH3870X2 1G
Diamond HD 3650 Pe 512
MSI R4830-T2D512-OC

ASUS EAX1900XTX/2DHTV/512M/A
ASUS EAX1950PRO/HTDP/256M/A
MSI NX8800GTX-T2D768E-HD
Foxconn FV-N88SMCD2-ONOC
MSI NX8800GTS-T2D320E-HD-OC
nVidia GeForce 8600GTS SLI
Foxconn
8600GTS-256
MSI NX8600GT-T2D256E-OC
MSI NX8600GTS-T2D256E-OC
Gigabyte GV-NX85T256H SLI
Gigabyte GV-NX85T256H
MSI NX7950GX2-T2D1GE
MSI NX7900GTX-T2D512E
Gigabyte GV-NX76GT256D-RH
Biostar Sigma-Gate GeForce 7600GS
Albatron 8600GT-256
MSI NX8800GT-T2D512E-OC
ASUS EN8800GT TOP/G/HTDP/512M/A
Palit 9600GT Sonic
Biostar V903GT52-NV1AN *

Memory:

Corsair DOMINATOR Twin2X2048-1800C7D (DDR3)

Corsair Twin2X2048-6400C3 (DDR2)

Hard Drive:

74GB Western Digital Raptor WD740

CDROM:

ASUS BC-1205PT-BD Blu-Ray Drive

Monitor (1080p):

ASUS MK241 24" HD LCD

Power Supply: PC Power amp; Cooling TurboCool 750W
Heatsink: Intel E8400 Reference Intel E6750 Reference Athlon64 FX-62 Reference Heatsink
Test System Setup:

Microsoft Windows Vista Ultimate 32-bit
Intel INF 9.0.0.1008
Catalyst 9.3
Forceware 185.85
nVidia 15.23

Microsoft Windows XP Pro SP2
Microsoft Windows Vista Ultimate 32-bit*

Benchmarks:

3DMark06
3DMark Vantage
Far Cry 2
STALKER Clear Sky
FEAR
Crysis
Call of Juarez
Lost Planet

Benchmark results are organized by GPU manufacturer first (AMD/ATI or nVidia), then by GPU generation, and then by GPU class (high end, mainstream, value). This approach provides a clearer view of how performance can differ from generation to generation, and class to previous generation. The product being tested is marked with the red colour bar.
