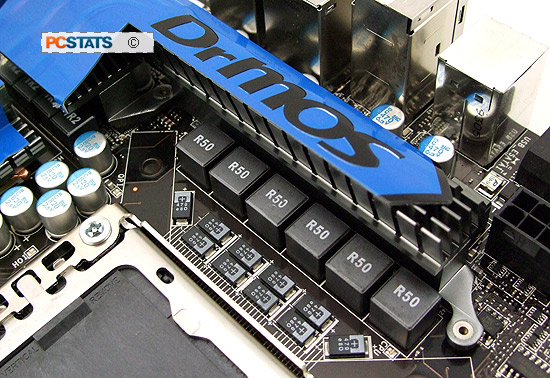

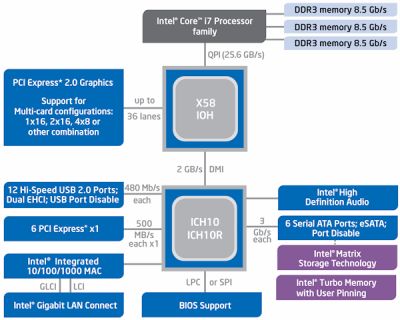

Intel's
X58 Express chipset is a big departure from the way Intel has designed their
core logic for the past five or so years.
The biggest change is the removal of the Front Side
Bus, which used to be the communications path that let the CPU, northbridge and
memory send data to one another.
The replacement for the Front Side Bus is called
Quick Path Interconnect, and it runs directly from the X58 northbridge to the
Core i7 CPU. This new data interface reduces the amount of congestion and
bottle necking that the FSB could cause in previous Intel chipsets. The QPI
for Intel's X58 chipset can support up to 6.4 giga transfers/second per
direction, for a total of 12.8GB/s of aggregate bandwidth.
So if QPI is connecting the CPU and the northbridge
together, how is the memory communicating with anything? Well, Intel has taken a
page from AMD's book, and has placed the memory controller on the processor,
instead of making the northbridge responsible for it. This reduces overall
memory latency and frees up system bandwidth.
Currently, for all of QPI's dramatic changes from
traditional FSB-based architecture, it still operates very much like Intel's
previous chipsets, and most won't notice that the memory controller has
migrated. However QPI's nature as a point-to-point interface (instead of a
bottleneck-prone all encompassing 'stream', the way FSB is), open up
possibilities for it to be used in multi-processor systems, where two physical
processors can be used on a single motherboard, both of them connecting to an
I/O core logic chipset like the X58 simultaneously through a pair of QPI
links. This is all in the future for desktop computers, although dual and
quad-socket server boards designed for Nehalem-based Xeon processors are
already starting to appear.
The Intel Core i7's memory controller supports DDR3
memory only, with official support for speeds of PC3-6400 and PC3-8500 memory
(also known as DDR3-800 and DDR3-1066), optimized for triple-channel
bandwidth. On certain motherboards like the MSI Eclipse Plus, it's possible
to use faster DDR3-1333 memory. The total memory capacity for the Intel X58
Express chipset is 24GB.
An important note about DDR3 memory - watch the
voltages! Running DDR3 voltages above 1.65v can cause permanent CPU damage over
time. Since some DDR3 modules that were designed for older chipsets natively
require higher voltages, it's wise to be very careful about memory choices when
you're setting up an Intel X58 motherboard.
Intel Chipsets Feature
Breakdown |
|
Intel X58 Express |
Intel X48
Express |
Intel X38
Express |
Intel 975X Express
|
Intel P35 Express
|
CPU |
LGA 1366 Core i7 |
LGA775 Core 2 Quad |
LGA775 Core 2 Duo |
LGA775 Core 2 Duo |
LGA775 Core 2 Duo |
Front Side Bus (FSB)/QPI |
6.4 GT/S |
1600/1333/1066/800 MHz |
1333/1066/800 MHz |
1066/800 MHz |
1333/1066/800 MHz |
Intel XMP Memory |
Yes |
Yes |
Yes |
No |
No |
Memory Support |
DDR3 1066/800 |
DDR3 1600 (XMP) /1333/1066/800 |
DDR2 1066/800/667 DDR3
1333(unofficial)/1066/800 |
DDR2 800/667/533 |
DDR2 1066/800/667 DDR3
1333(unofficial)/1066/800 |
Maximum Memory Capacity |
24GB |
8GB |
8GB |
8GB |
8GB |
Integrated Graphics |
- |
- |
- |
- |
- |
PCI Express 2.0 x16 |
2 |
2 |
2 |
2 |
1 |
PCI Express x1 |
6 |
6 |
4 |
4 |
6 |
Intel Matrix Storage Technology |
Yes |
Yes |
Yes |
Yes |
Yes |
SATA/IDE HDD |
6/0 |
6/0 |
6/0 |
4/1 |
6/0 |
SATA Speed |
3GB/s |
3Gb/s |
3Gb/s |
3Gb/s |
3Gb/s |
RAID |
0, 1, 5, 10 (with ICH10R) |
0, 1, 5, 10 (with ICH9R) |
0, 1, 5, 10 (with ICH9R) |
0, 1, 5, 10 (with ICH7R) |
0, 1, 5, 10 (with ICH9R) |
Hard Drive NCQ |
Yes |
Yes |
Yes |
- |
Yes |
USB 2.0 Ports |
12 |
12 |
12 |
8 |
12 |
PCI Masters |
6 |
6 |
6 |
6 |
6 |
Audio |
High Definition Audio (Azalia) |
High Definition Audio (Azalia) |
High Definition Audio (Azalia) |
High Definition Audio (Azalia) |
High Definition Audio (Azalia) |
|
|
|
|
|
| | |
The Intel X58 Express chipset has 36 lanes of PCI
Express 2.0 bandwidth that can be divided into different combinations to power
PCI Express slots depending on the motherboard configuration. The MSI Eclipse
Plus takes this a step further and adds in the NVIDIA nForce 200 SLI
processor.
The most important job of the nForce 200 chipset is
enabling NVIDIA's Scalable Link Interface. If you're an NVIDIA fan, you likely
already know that SLI lets you run multiple Geforce graphics cards together, and
that up until now SLI was limited to NVIDIA chipsets only. The nForce 200 SLI
processor changes all that, allowing both two and three-way SLI configurations
in conjunction with the Intel X58 chipset.
This secondary NVIDIA chip does a few other things to
augment the abilities of the Intel X58 chipset. The nForce 200 is a bridge chip
that sits on one of the Intel X58 chipset's PCI Express 2.0 x16 bandwidth lanes,
and doubles the front-end connectivity to the videocards to 32 lanes of PCI
Express 2.0 bandwidth.
Since the nForce 200 SLI
processor introduces more connectivity to videocards than it can communicate to
the Intel X58 chipset, there's a bandwidth bottleneck when running three
videocards at x16 bandwidth. MSI takes the remaining x4 lanes of bandwidth
from the X58 and uses them in a fourth PCI Express x16 slot.
This effectively means that the MSI
Eclipse Plus, along with other Intel X58 + nForce 200 motherboards, lets you
plug in three PCI Express x16 slots for a total front-end of 48 +
4 lanes of PCI Express bandwidth, but the chipset still only has enough
width to accept 36 lanes.
