LiteON iHAS524 DVD-DL Writer Review
LiteON iHAS524 DVD-DL Writer Review - PCSTATS
Advances are still happening in the world of optical drives believe it or not, and more than just boosts to DVD write speed! In this review PCSTATS is testing a particularly neat technology built into the LiteOn iHAS524 12x DVD-DL (24x DVD±R) recorder that may just convince you to spring for a sleek new SATA drive...
 82% Rating:
Filed under: Optical Drives Published:  Author:
External Mfg. Website: LiteON Dec 15 2010   Max Page
Home > Reviews > Optical Drives > LiteON iHAS524

ODD Benchmarks: Sandra 2011, Nero DiskSpeed Data / Audio

SiSoft Sandra 2011 - Optical Drive Tests Source: Sandra

Sandra is designed to test the theoretical power of a complete system as well as the individual components. The results are also purely theoretical and may not represent real world performance. Test media for this benchmark was an 8.4GB DVD-R DL disk.


Sisoft Sandra 2011 Benchmark Results

Optical Drive

Lite-On iHAS524

Lite-On iHAS424

Disc Type DVD-R DL Data Data
Drive Score 7.43MB/s 7.42MB/s
Access Time: 172.27ms 161.8ms

Lite-on's iHAS524 does quite well in SiSoft Sandra's optical drive tests.

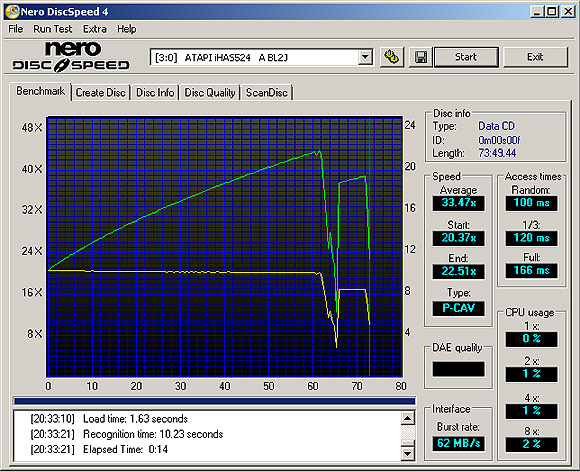

Nero DiskSpeed 4: CD Data Media Source: Ahead Software

DiskSpeed 4 is a CD/DVD-ROM benchmark which can test the most important features of an optical drive. In this particular benchmark, we use a pressed CD-ROM with about 640MB of data as the test disk. Using a CD-R or CD-RW as the test disk may impact the results slightly, so pressed CD-ROM media is the standard testing tool.


CD Data Media Benchmark Results

Optical Drive

Lite-On iHAS524

Lite-On iHAS424

Disc Type Data Data
Avg Speed 33.47x 31.08x
Random Seek Time 100ms 101ms
1/3 Seek Time 120ms 120ms
Full Seek Time 166ms 167ms
CPU Use: 1x 0% 0%
CPU Use: 2x 1% 1%
CPU Use: 4x 1% 1%
CPU Use: 8x 2% 2%
Disc recognition Time (sec) 10.23 0
Disc Eject Time (sec) 0.14 1.75
Disc Load Time (sec) 1.63 11.41

The Lite-On iHAS524 does a good job in this test as well.

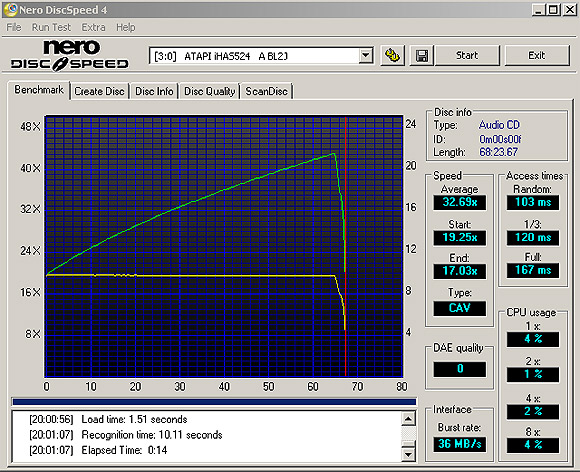

Nero DiskSpeed 4: CD Audio Media Source: Ahead Software

Nero DiskSpeed 4 is a CD-ROM benchmark which can test the most important features of a CD-ROM drive. In this particular benchmark we use a pressed Audio CD with about 65 minutes of audio on it as the test disk. CDROMs in general have a harder time processing audio data and hence the results can be drastically slower than equivalent 'pure' data tests.


Audio Media Benchmark Results

Optical Drive

Lite-OniHAS524

Lite-On iHAS424

Disc Type Audio Audio
Avg Speed 32.69x 28.65x
Random Seek Time 103ms 103 ms
1/3 Seek Time 120ms 124 ms
Full Seek Time 167ms 176 ms
DAE Quality 0 2
CPU Use: 1x 4% 4%
CPU Use: 2x 1% 1%
CPU Use: 4x

2%

2%
CPU Use: 8x 4% 3%
Disc recognition Time (sec) 10.11 0.01
Disc Eject Time (sec) 0.14 1.75
Disc Load Time (sec) 1.51 11.66
