Briefly: Pentium III AGP based ATX motherboard with AGP
4X, ATA/100, SoftMenu III

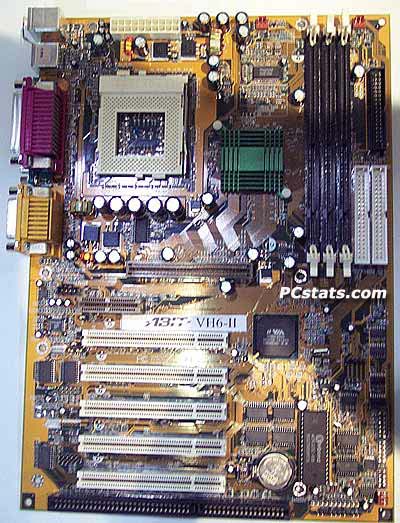

| VH6-II |
| CPU: |
Intel Celeron socket 370 (66Mhz clock),
CopperMine FC-PGA socket 370 (66/100/133Mhz clock), VIA/Cyrix III
(100/133Mhz clock)
|
| Chipset:
| - VIA Apollo Pro 133A chipset (VT82C694X
and VT82C686B)
- Advanced configuration and power
management interface (ACPI)
- AGP 1X/2X/4X (sideband) 3.3V
devices
|
| Memory:
| - Three 168-pin DIMM sockets support
PC100/PC133 SDRAM module
- Supports upto 1.5GB SDRAM (8, 16, 32,
64, 128, 256, 512MB)
- ECC support
|
| Audio:
| - Integrated AC'97 digital audio
controller
- AC'97 audio CODEC on board
- Audio driver
included
|
| System BIOS:
| - SoftMenu III to set CPU
parameters
- Award plug and play BIOS supports APM,
DMI
- Write-protect anti-virus function by
Award BIOS
|
| I/O Connectors and Ports:
| - 2 Bus master IDE channels
supporting upto 4 Ultra DMA 33/66/100 devices
- PS/2 keyboard and PS/2 mouse
connectors
- 1 floppy port (max 2.88MB)
- 1 parallel port (EPP/ECP)
- 2 serial ports
- 2 USB connectors
- On board USB header for two extra USB
channels
- Audio connector (line-in, line-out,
mic-in, game port)
|
| Expansion Slots:
| - 1 AGP slot
- 5 PCI slots
- 1 ISA slot
- 1 AMR slot
|
| Miscellaneous:
| - ATX formfactor
- Hardware monitoring - fan speed,
voltages, system environment temperature plus one thermal header for
remote temperature monitoring
- Wake on LAN header
- Wake on ring header
- IrDA TX/RX
header
|
