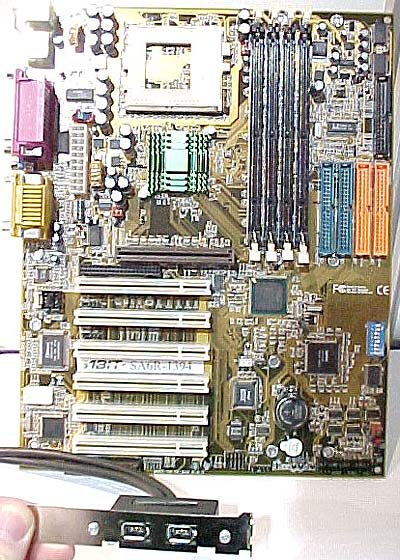

| SA6R-1394 |
| CPU: |
Intel Pentium III socket 370 processors
upto 1.0Ghz at 100 and 133Mhz FSB, Celeron socket 370 CPU's upto 733Mhz at
66FSB, reserved support for future Intel Pentium III/Celeron socket 370
based processors.
|
| Chipset:
| - Intel i815E (ICH2) chipset
- 66/100/133Mhz Front Side Bus
- Advanced configuration and power
management interface (ACPI)
- AGP 1X/2X/4X (sideband) 1.5V/3.3V
devices
- Ultra ATA/100, Ultra ATA/66, Ulta/33
modes
|
| Ultra DMA 100/RAID:
| - High point HTP370 IDE controller
- Ultra DMA 100MB/sec data transfer rate
- RAID 0 (striping mode for boosting
performance)
- RAID 1 (mirroring mode for data
security
- RAID 0+1 (stripping and
mirroring)
|
| Memory:
| - Four 168-pin DIMM sockets support
PC100/PC133 SDRAM module
- Supports upto 512MB SDRAM (64, 128,
256MB)
|
| Graphics:
| - Chipset-integrated 2X 3D graphics
acceleration
- AIMM AGP in-line memory module
support
|
| Audio:
| - Integrated AC'97 digital audio
controller
- AC'97 2-channel audio CODEC on
board
|
| System BIOS:
| - SoftMenu III technology and DIP
switches
- Award plug and play BIOS supports APM,
DMI - Write-protect anti-virus function by
Award BIOS
|
| I/O Connectors and Ports:
| - 4 Bus master IDE channels supporting
DMA 33/66/100 for upto 8 IDE devices
- 2 P139a fully compliant cable ports at
100/200/400 megabits per second
- PS/2 keyboard and PS/2 mouse
connectors
- 1 floppy port (max 2.88MB)
- 1 parallel port (EPP/ECP)
- 2 IEEE-1394 ports
- 2 serial ports
- 2 USB connectors
- On board USB header for two extra USB
channels
- 1 standard VGA connector
- Audio connector card (line-in,
line-out, mic-in, game port)
|
| Expansion Slots:
| - 1 universal AGP slot
- 6 PCI slots
- 1 CNR slot
|
| Miscellaneous:
| - ATX formfactor
- Hardware monitoring - fan speed,
voltages, system environment temperature and one thermal header for
remote temperature monitoring
- Wake on LAN header
- Wake on ring header
- Keyboard and mouse power on
- Digital video out interface support
digital display or TV out (optional)
|
