Tyan Thunder i7501 Xtreme S2726UGN Rev.02 Server Motherboard Review
Tyan Thunder i7501 Xtreme S2726UGN Rev.02 Server Motherboard Review - PCSTATS
Tyan does have a reputation for quality and stability, and the company earns its bread and butter by producing some of the best server and workstation motherboards in the market.
 86% Rating:
Filed under: Motherboards Published:  Author:
External Mfg. Website: Tyan Aug 15 2005   M. Dowler
Home > Reviews > Motherboards > Tyan Thunder i7501 Xtreme S2726UGN

Websites and internet applications run on servers, and when it comes to choosing the ideal mix of software and hardware to match the needs set forth by the existing infrastructure or website demand, it's never a straightforward decision.

While there is a grocery list full of benchmarks and other application specific metrics to choose from when evaluating desktop computer configurations, there is stark little for servers. Those server benchmark applications which do exist are application specific, which in the best of light does not always present the IT professional with a nice rosy set of numbers to use in broad comparisons. This may explain why it is so difficult to find good full sever reviews to base purchasing decisions upon... While we won't claim to have the solution to the world's sever evaluation dilemma, PCSTATS has been able to narrow things down to a few common, and industry accepted benchmarks. Evaluation tools and points of comparison help elevate some of the digital haze.

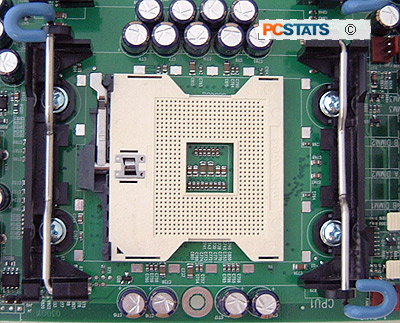

In this review PCSTATS is evaluating the Tyan Thunder i7501 Xtreme S2726UGN dual Xeon motherboard, with a pair of socket 604 3.06GHz Intel Xeon DP processors and an eye towards determining what level of performance we can expect against a similarly equipped Xeon platform. This is a pure performance vs. cost with a good slice of realistic performance expectations. Our comparisons are valid for the applications we mention, and may not necessarily represent the ideal scenario in every situation. At best we can aim to guide you in the right direction when making your server purchasing decisions.

Tyan Thunder i7501 Xtreme S2726UGN Rev.02 Server Motherboard

Includes:

Users Manual, Ultra/133 IDE cable, Floppy Drive Cable, Ultra320 SCSI Cable, Driver CD, I/O Backplate

Tyan does have a reputation for quality and stability, and the company earns its bread and butter by producing some of the best server and workstation motherboard in the market.

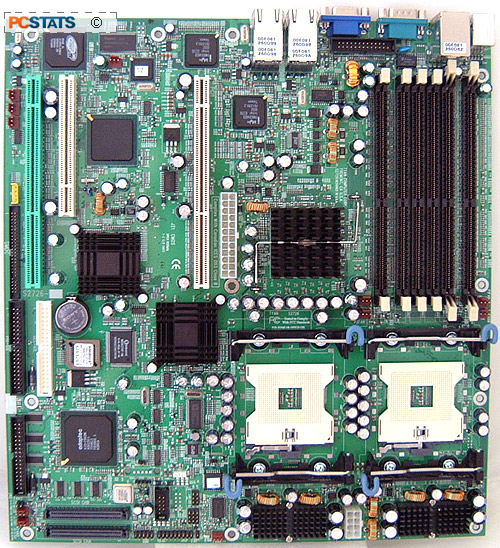

The Tyan Thunder i7501 Xtreme 2726UGN Rev.02 server motherboard is based on Intel's server E7501 chipset, and enables administrators to load up with one or two socket 604 Xeon DP 533 MHz processors. The six DDR DIMM slots can be filled with a maximum of 12GB of ECC Registered PC1600/2100 memory. The board takes on the SSI EEBv3.0 footprint that is so common to 1U dual processor server boards (it measures 12" x 13"). It requires EPS12V 24-pin and 8-pin compatible power supply.

In terms of peripheral expansion, the Tyan Thunder i7501 Xtreme has one regular 33 MHz 32-bit 5V PCI slot, one 133/100/66 MHz 64-bit 3.3V PCI slot and one green 100/66 MHz 64-bit 3.3V PCI slot. Should you get the Thunder i7501 Xtreme that does not come with onboard dual channel SCSI, the green PCI-X slot can operate at 133 MHz as well.

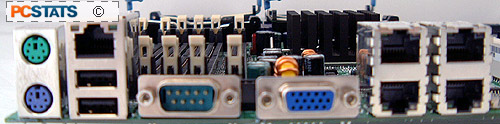

Onboard video comes care of a 4MB ATi RageXL chipset. Connectivity is satisfied with four Intel 82546EB Gigabit network adaptors, and one 10/100 Intel 82551QM NIC. The four NIC's are divided up into two pairs and each pair share one 133 MHz PCI-X connection which guarantees that none of the Gigabit NIC's will be bottlenecked.

Economical IDE drives, or even just a CDROM for loading software can be connected via an IDE ATA100 bus, and for serious data storage and retrieval, Tyan have added in an onboard Adaptec AIC 7902W SCSI RAID controller.

This provides us with dual Ultra320 SCSI RAID channels on the Tyan 2726UGN.

Moving on with the boards features...
