| Overclocking Results: |
|
|

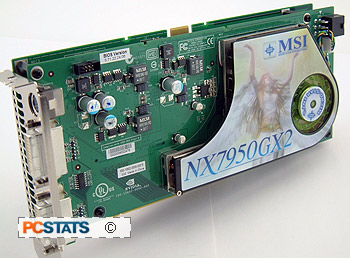

The NX7950GX2-T2D1GE is MSI's top of the line videocard
and its core comes clocked at 500 MHz while the memory hums along at 1200 MHz.
Starting with the core first, the only tweaker that is compatible with the
NX7950GX2-T2D1GE is nVIDIA's own nTune 5 software.
Seeing as how the MSI NX7950GX2-T2D1GE uses
two of the same G71 cores that are found in the Geforce 7900GT/GTX
single GPU graphics card, I had some high hopes in terms of
overclocking.
The core memory frequency was overclocked in 5-10 MHz increments and
the first 100MHz flew by quickly. While the GeForce 7950GX2's easily
broke the 600 MHz mark it quickly became apparent that the complexity of
this configuration might make it hard from the twin GPU's to reach typical GeForce 7900GTX overclocked
levels.
In the end the
fastest we could push the MSI NX7950GX2's
twin cores to was 640 MHz. That's a pretty healthy overclock from the 500
MHz stock core speed, and only 10 MHz slower than what the GeForce 7900GT's run
at.
Next up was the 1GB of GDDR3 memory, which is clocked at
1200 MHz by default. Increasing the clock speed in 10-20 MHz intervals, the memory was not about to
be outdone by the good core overclock we achieved. The 1300 MHz barrier
came and went as did 1400 MHz. But, after that the going went slowly and
in the end the maximum speed the memory overclocked to was 1480 MHz. Speeds higher than this
were possible, but the MSI NX7950GX2-T2D1GE would start to artifact during 3DMark
tests.
Please keep in mind these clock speeds when viewing the benchmark
results, in applications that do not support or fully support SLI, the MSI
NX7950GX2-T2D1GE videocard may have a hard time keeping up with the GeForce 7900GT
since its memory clock speed is significantly lower.
Prelude to
Benchmarks
The details of how the MSI NX7950GX2-T2D1GE
test system was configured for benchmarking; the specific hardware, software
drivers, operating system and benchmark versions are indicated below. In the
second column are the general specs for the reference platforms this nVidia
GeForce 7950GX2 based videocard is to be compared against. Please take a moment
to look over PCSTATS test system configurations before moving on to the
individual benchmark results on the next page.
|
