Iwill KK266 Plus Motherboard Review
Iwill KK266 Plus Motherboard Review - PCSTATS
The immensely popular KK266 line of motherboards has already won over the hearts of performance users and overclockers a like...
 92% Rating:
Filed under: Motherboards Published:  Author:
External Mfg. Website: Iwill Aug 26 2001   C. Sun
Home > Reviews > Motherboards > Iwill KK266 Plus

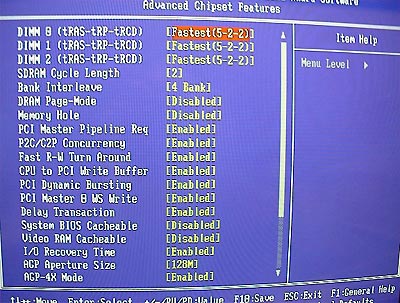

KK266Plus BIOS

Almost everything can be tweaked in the bios, there are the usual memory tweaks, one I particularly like is the ability to force 4 way bank interleaving .

Then there's, Iwill's Microstepping, it's their name for 1 MHz increments from 100-200 MHz, although there is a need to move a jumper to enable 133 MHz+ bus speeds. Also, to adjust the VIO, there's a jumper you have to set. I still don't understand why they couldn't incorporate a total jumperless solution. Again, it's more of an annoyance then anything else.

With my old KK266-R, I was able to hit a top bus speed of 168 MHz with my ram set to 2-2-2-6, I honestly did expect more (even though I knew my memory was at it's max) but I wasn't able to hit higher. Still, the KK266plus did seem just a little quicker at the same speeds and as you'll see, the benchmarks actually show this too! Very exciting!!
