How could we
possibly test a phase-change cooler without doing some overclocking? For this section of the review, an
AMD Athlon64 4000+ processor (stock speed 2.4GHz) and a DFI
LANParty NF4 SLI-DR motherboard were used. It will be
interesting to see just how well the Athlon64 4000+ will do
with its 1MB of L2 cache....
The first overlocking snag came up at
2.88 GHz (240 MHz motherboard clock speed). The DFI LANParty NF4 SLI-DR system would randomly
BSOD while loading Windows, so the CPU voltage was raised to 1.65V to stabilize
it.
The overclocking continued until the system ran into some CPU
stability problems at 2.96GHz, illustrated by the fact it could not finish a 1 million digit
Super Pi test. To solve this, the CPU voltage was increased further still, to
1.75V.
Unfortunately, it seemed our Athlon64 4000+ test processor
didn't like high
voltages and it maxed out at a speed of 3.06 GHz (255 MHz motherboard
speed). It's not the greatest overclock I've *ever seen* with a Prometeia Mach II GT,
but we did reach our goal of at least 3 GHz.... and let me tell you, it's fast!
All the

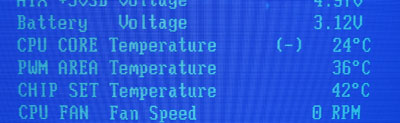

while this overclocking was going on, the idle temperatures were sitting
at about balmy -24°C according to the BIOS.
Now, according to
the ITE Temperature reader which is read by overclocking software when
the system is in Windows, the processor was running (incorrectly) at 240°C! The program doesn't know how to register negative temperatures and once
you go below zero it starts at 255 and counts downwards.
What we were really looking at was a loaded temp of somewhere around -15°C.
Conclusions and Summary
We

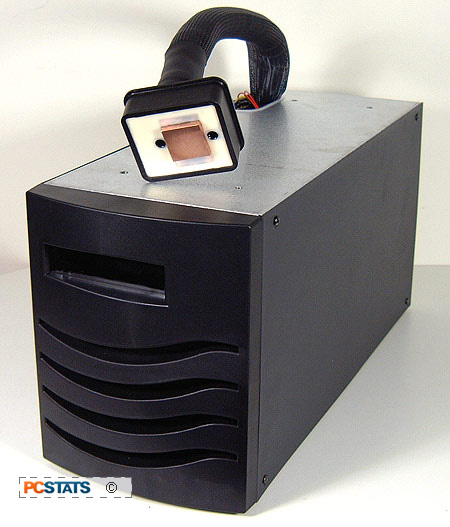

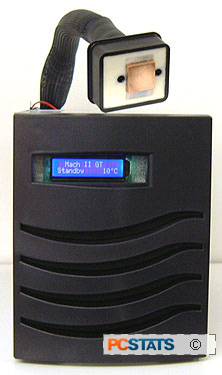

just finished looking at ECT's flagship phase change cooler, the Prometeia Mach II GT....
and we're pretty darn impressed.
Nothing else on the market can give overclockers such low temperatures with a
minimum of fuss or mess. From our staffers position as an owner of
both Prometeia and Vapochill coolers, he definitely prefers the ECT way of handling insulation
around the CPU socket.
Current Prometeia owners may like to
know Mach II GT is virtually identical hardware-wise to the previous generation. The only
real difference is the type of refrigerant used in the compressor; that
being R404a instead of R134a. The R404a refrigerant allows the Prometeia Mach II GT to reach its booting temperature
faster, but more importantly it allows the cooler to attain a lower operating temperature!
Compared to the older models, users can expect a drop of -10°C to
-15°C.
Acoustically, the ECT Prometeia Mach II GT is in general
pretty quiet, but the compressor motor does create an audible low-pitched hum.
In most situations this noise will blend into the background, and in
quieter environments it will be as disrupting as a bar fridge would be. Yet for the temperatures attainable
by the Mach II GT, the noise created by the compressor and two fans is acceptable, and
nothing compared to the old standard of a Vantec Tornado or 60mm Delta
screamer.
In the
overclocking tests conducted with the Prometeia Mach II GT, PCSTATS was able to push
an AMD Athlon64 4000+ to over 3 GHz while keeping operational temperatures of -24°C at idle!
Load temperatures were in the -15°C range, which is still nice and frosty. During testing,
evaporator temperatures hovered between -60°C and -45°C mark, depending on
the heat load the Athlon64 4000+ processor was generating.
With a current retail price of $1042 CDN ($849
US) through vendors like Hardwaregods.net, there is no getting around the fact that the ECT Prometeia Mach II GT is a
luxury item for dedicated overclocking enthusiasts.
However,
if you are thinking about taking the plunge, consider carefully what we
have said in this review and remember that ECT have a very flexible cooling
system here. It's one that meets the needs of only the most demanding users, but as long as new socket kits are available for future
processor releases there is no reason why the Prometeia Mach II GT couldn't be
used years down the road. In that respect, as a long term "investment in cooling," it certainly will earn its
keep. With dual core processors from AMD and Intel hitting the market, the days
of overclocking on air-cooled heatsinks and watercooling rigs are numbered. It's a pretty good bet
that processors which are as yet unreleased will continue to generate substantially more heat
per square inch, so overclocking hardware will have an increasingly difficult challenge placed before it
in the years to come.
Besides all of that, a phase change cooler like the ECT Prometeia Mach II GT
is just too damn cool! ;)
