Step Five: Installing the Replacement Screen

Now we're ready to install the replacement laptop LCD screen panel we purchased off Ebay.

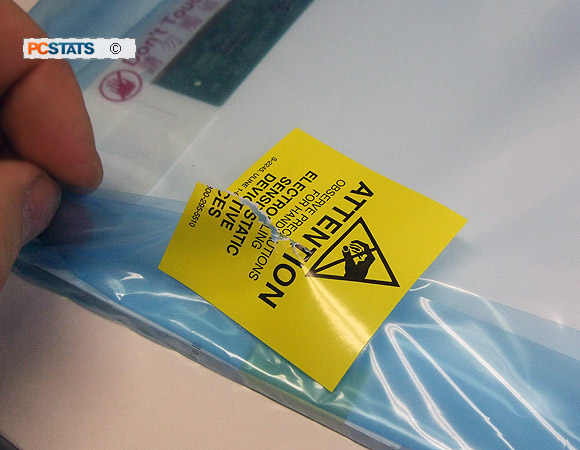

Open the anti-static bag containing the replacement LCD screen panel.

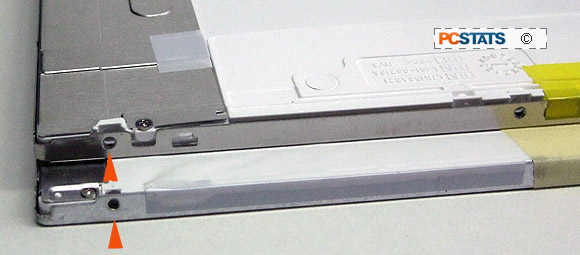

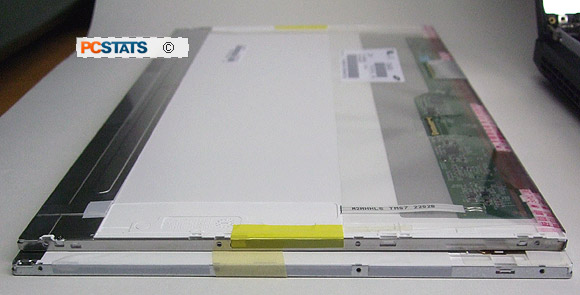

Compare the two LCD screens to double check that screw holes along the edge match up.

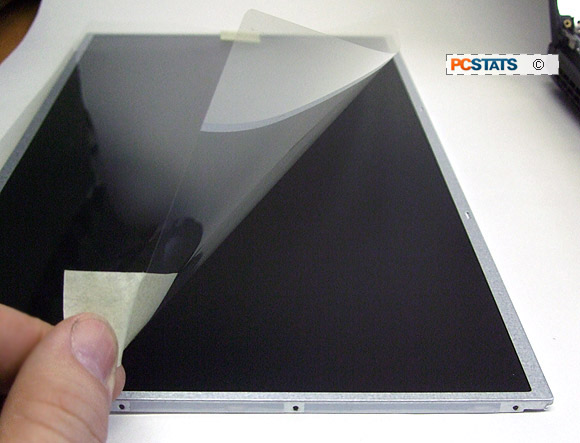

Remove the protective plastic film and masking tape from the new replacement LCD screen panel before sliding it into the metal frame in the laptop.

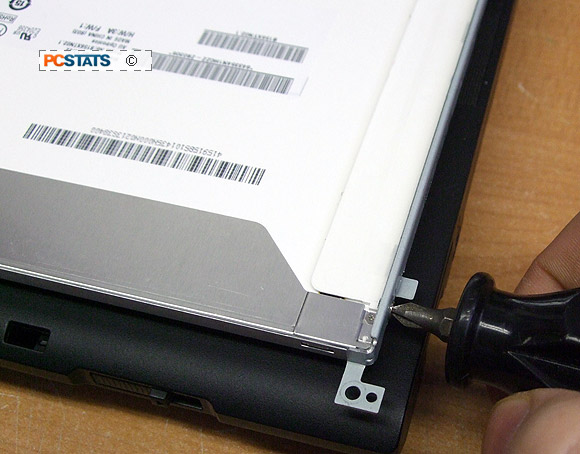

Slide the replacement LCD panel into the metal support frame, align the screw holes and start putting the screws back in place.
