Beginners Guides: Repairing a Cracked / Broken Notebook LCD Screen
Beginners Guides: Repairing a Cracked / Broken Notebook LCD Screen - PCSTATS
A broken or cracked LCD screen makes a laptop utterly useless, good thing PCSTATS can show you how to replace that busted laptop screen with a minimum of fuss and for less money than a service center charges. PCSTATS will be fixing a cracked LCD screen on a Lenovo T530 ThinkPad notebook, the general procedures outlined here work for any notebook though.
Filed under: Beginners Guides Published:  Author:
External Mfg. Website: Beginners Guides Aug 26 2018   Max Page
Home > Reviews > Beginners Guides > Beginners Guides Beginners Guides

Step Five: Installing the Replacement Screen Pg 2

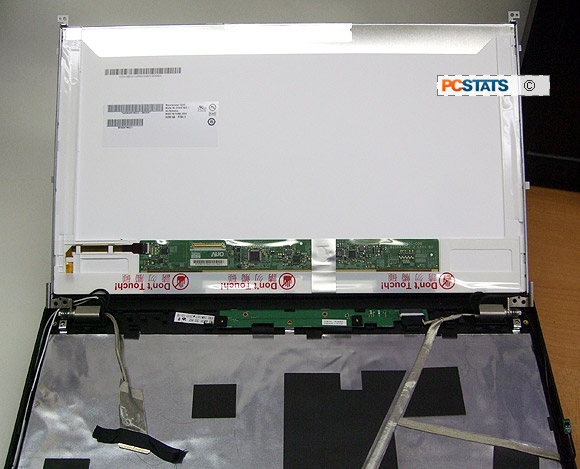

Tilt the LCD screen panel up so you have clear access to reconnect the data cable.

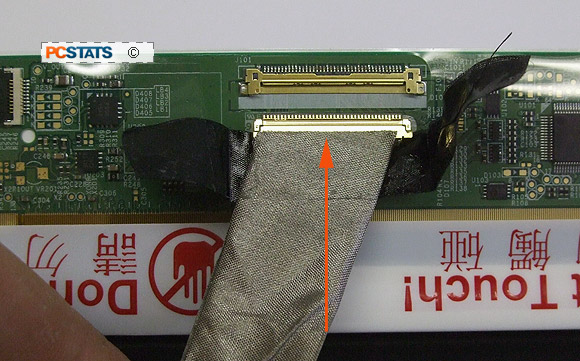

Carefully slide the data cable into the connector on the replacement LCD screen panel.

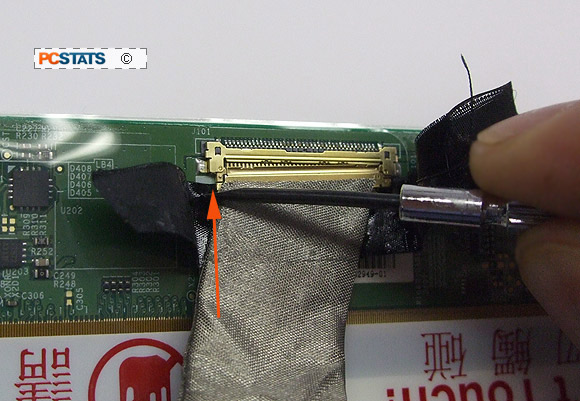

Push one end of the connector into the socket with a small tool - we used the edge of a small screw driver.

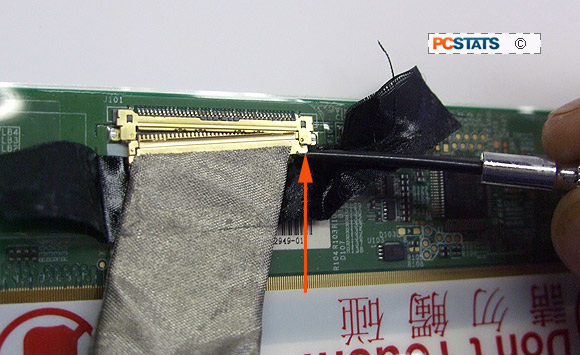

Move to the other side of the connector cable and push it home.

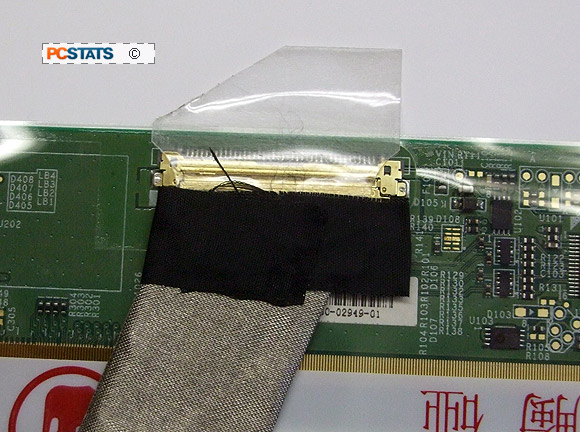

When properly installed, two small holes on either side of the female half of the 40-pin connector will be filled by metal dots from the male connector section. Once you're confident the cable is inserted fully, re-attach the clear plastic sticker across the connector joint and then fold down the ends of the black fiber tape.

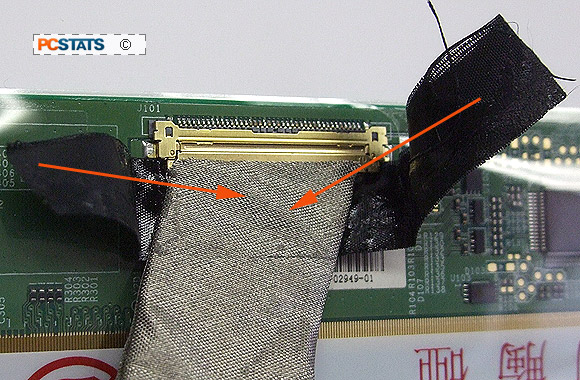

The finished notebook-to-LCD screen panel connection should look like this.
